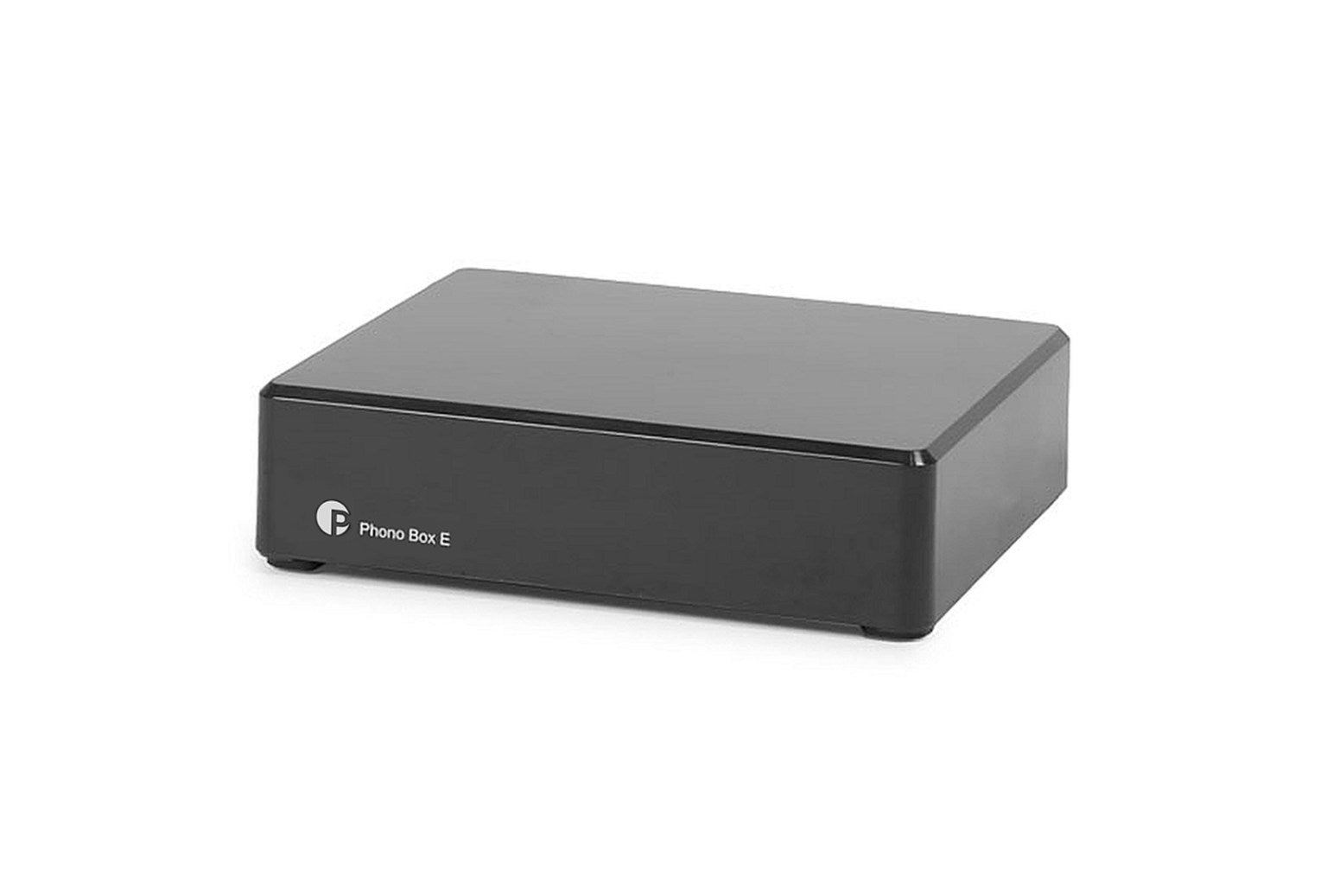

Phono Box E

Phono preamplifier

Phono Box E: Pure vinyl listening pleasure at an absolute bargain price!

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Features

Amplification and RIAA equalisation for MM cartridges
Design principle inspired by Dr. Sykora
SMD circuitry
Special low noise components
Internal metal shielding
Small size allows installation close to record player
Gold plated RCA connection sockets
Outboard power supply included

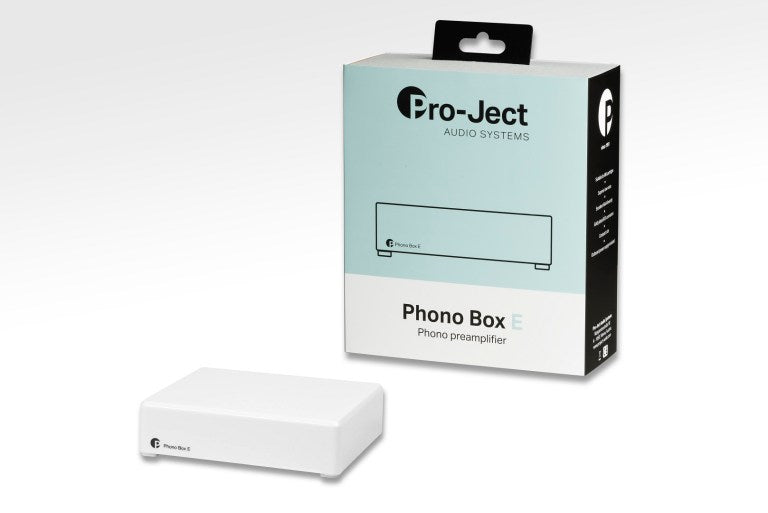

Black or White casing

Technical Specifications

Input impedance 47 kohms
Input capacitance 120 pF
Gain 40 dB
Output voltage(typically) 500mV/ 1kHz at 5mV/1kHz
Noise floor 88 dB (A weighted)
THD <0,05%
RIAA deviation deviation max. 0.5 dB/ 20 Hz - 20 kHz

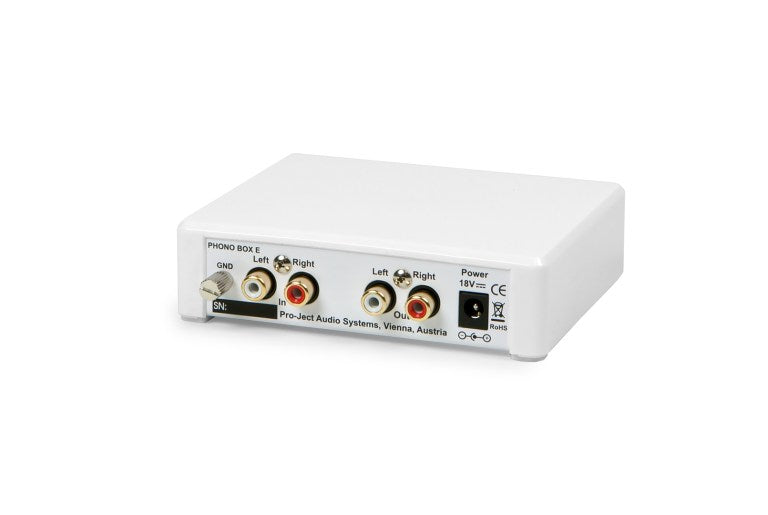

Input 1 pair RCA socket
Output 1 pair RCA socket
Outboard power supply 18 V/500 mA DC; 220 - 240 V, 50 Hz
Standby power consumption < 1 watt
Power consumption 20 mA DC
Dimension W x H x D (D with sockets) 120 x 32 x 100 (106) mm
Weight 269 g without power supply
