A tonearm is one of the most important mechanical parts of a turntable. It holds the cartridge and stylus, guides them across the record and allows the stylus to follow the groove with very small, controlled movements.
Although a tonearm may look simple, its geometry, bearings, tracking force and compatibility with the cartridge all influence how accurately a vinyl record can be played. This guide explains what a tonearm does, how its main parts work and what matters when setting one up.
What Is a Tonearm?

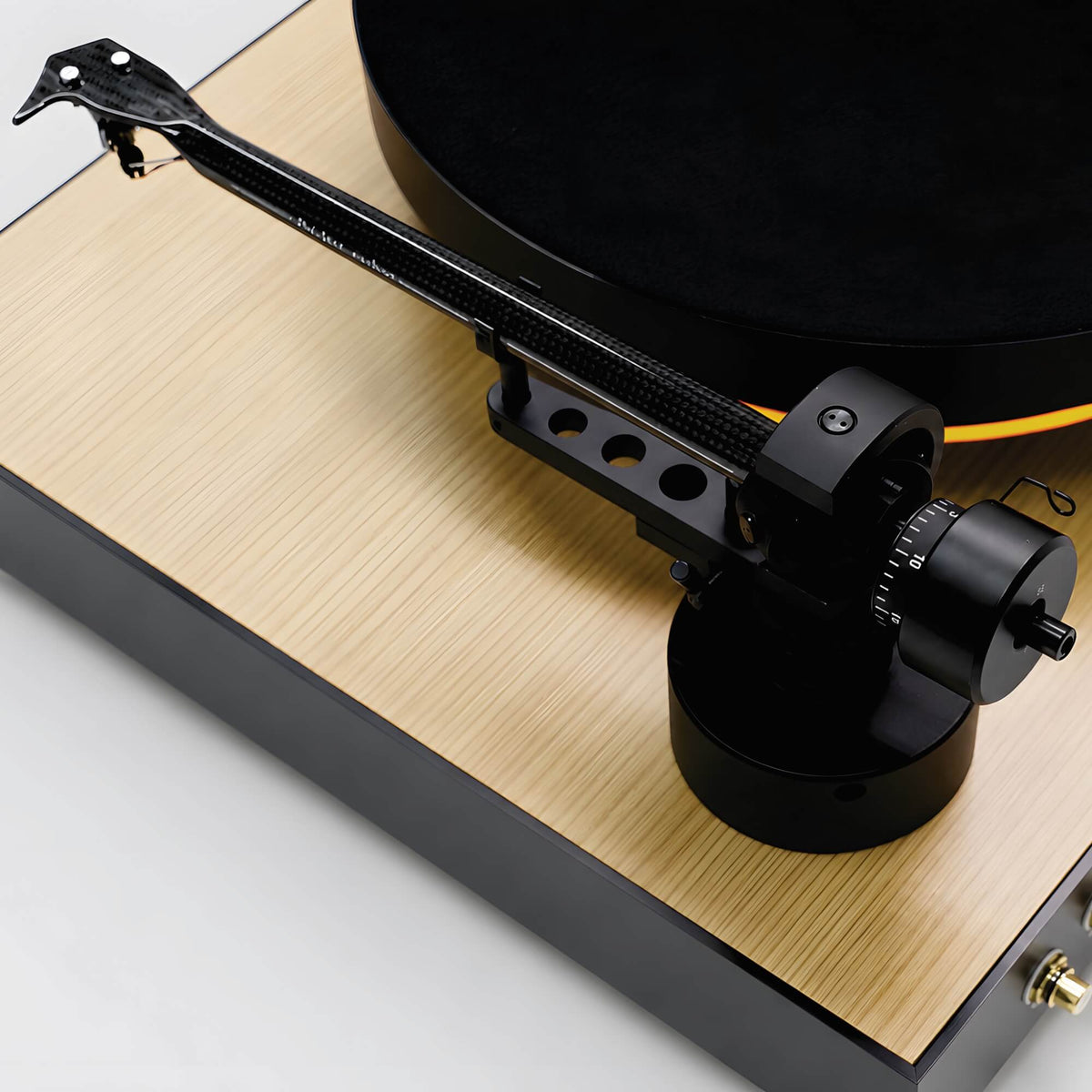

A tonearm is the movable arm on a turntable that carries the cartridge and stylus. During playback, the stylus sits in the record groove while the tonearm moves gradually from the outer edge of the record toward the center.
The tonearm has two jobs that must happen at the same time. It must keep the stylus in stable contact with the groove, while also allowing the cartridge to move freely enough to follow the microscopic modulations that contain the music.
If you are new to vinyl playback, our turntable vs record player vs vinyl player guide explains how the tonearm fits into the complete playback chain.
How Does a Turntable Tonearm Work?
The stylus moves through the groove of a rotating record. Those movements are transferred to the cartridge, which converts them into an electrical signal. The tonearm supports this process by holding the cartridge at the correct position, angle and force.
As the record plays, the arm pivots across the record. A well-designed tonearm should move smoothly with very little unwanted resistance while remaining mechanically stable.
This balance is important because excessive friction, incorrect geometry or the wrong tracking force can reduce tracking accuracy and increase distortion.
The Main Parts of a Tonearm
Arm Tube
The arm tube connects the cartridge area to the pivot. Its material, stiffness, mass and resonance behaviour are part of the tonearm design. The goal is to support the cartridge without adding unnecessary vibration or flex.
Pivot and Bearings
The pivot allows the tonearm to move horizontally across the record and vertically as the stylus follows small changes in the record surface. Precision bearings help the arm move freely while maintaining stable geometry.
Counterweight
Many tonearms use a counterweight at the rear of the arm to balance the cartridge and set the required tracking force. The correct value depends on the cartridge and stylus being used.
Headshell and Cartridge Mount
The cartridge is attached at the front of the tonearm. Some designs use a removable headshell, while others mount the cartridge directly to the arm. Correct alignment is important because the cartridge must follow the record groove at the intended angle.
Cueing Mechanism
A cueing mechanism raises and lowers the tonearm in a controlled way. This makes it easier to place the stylus on the record gently and reduces the risk of dropping it onto the vinyl surface.
What Is Tracking Force?
Tracking force is the downward force applied by the stylus to the record groove. It is usually specified by the cartridge manufacturer and is one of the most important tonearm setup values.
Too little tracking force can cause the stylus to mistrack or lose stable contact with the groove. Too much can place unnecessary load on the stylus and record. The correct setting allows the cartridge to operate as intended.
For accurate setup, tracking force can be checked with a dedicated stylus force gauge rather than relying only on markings on a counterweight.
What Is Anti-Skate?
As a pivoted tonearm plays a record, the geometry of the rotating groove can create a force that tends to pull the arm inward. Anti-skate is designed to counter part of that force.
The exact implementation varies between tonearms. Correct anti-skate helps the stylus maintain balanced contact with both groove walls and can support stable tracking.
Why Tonearm Geometry Matters
A pivoted tonearm follows an arc across the record rather than a perfectly straight line. Cartridge alignment therefore aims to minimise tracking-angle error across the playable area of the record.
Important geometric factors can include effective length, overhang and cartridge offset angle. When a cartridge is changed, alignment should be checked according to the tonearm and turntable manufacturer's instructions.
Straight, S-Shaped and J-Shaped Tonearms
Tonearms can use different shapes. Straight arms are common on many hi-fi turntables, while S-shaped and J-shaped arms are also widely used. Shape alone does not determine sound quality; it is one part of the complete mechanical design.
Bearing quality, effective mass, cartridge compatibility, geometry and setup are usually more useful considerations than judging a tonearm only by its shape.
Tonearm Effective Mass and Cartridge Compatibility
Every tonearm has an effective mass, and every cartridge suspension has a compliance characteristic. The combination affects the resonance behaviour of the tonearm and cartridge system.
This is one reason why not every cartridge is an ideal match for every tonearm. When changing cartridges, it is useful to check the manufacturer's compatibility guidance in addition to physical mounting and electrical requirements.
Does the Tonearm Affect Sound Quality?
The tonearm does not create the musical signal by itself, but it provides the mechanical environment in which the cartridge works. Bearing friction, resonance, rigidity, alignment and tracking stability can all influence how accurately the stylus follows the groove.
In a carefully configured turntable, the tonearm, cartridge, platter, drive system and phono stage should be considered as parts of one playback system rather than isolated components.
Manual and Semi-Automatic Tonearm Operation
On a manual turntable, the listener normally places the tonearm at the beginning of the record and lifts it at the end. Automatic and semi-automatic turntables add mechanisms that perform some of these actions.
The MAG-LEV Audio ML1 uses semi-automatic operation. If power is interrupted, its UPS Safety System lifts the tonearm and raises support beneath the floating platter before the platter settles. You can read more about this sequence on the ML1 technology page.
Basic Tonearm Setup Checklist
- Confirm that the turntable is level and stable.
- Install the cartridge according to the tonearm instructions.
- Check cartridge alignment when required.
- Set tracking force to the cartridge manufacturer's specification.
- Set anti-skate according to the tonearm guidance.
- Make sure the stylus is clean and undamaged.
- Recheck setup after changing the cartridge or stylus.
Frequently Asked Questions
What does a tonearm do on a record player?
The tonearm holds the cartridge and stylus and allows them to follow the record groove from the outer edge toward the centre while maintaining the required tracking geometry and force.
Is a better tonearm always heavier?
No. Tonearm mass is a design parameter, not a simple measure of quality. Effective mass should be appropriate for the cartridge, while rigidity, bearings and resonance control also matter.
Can I put any cartridge on any tonearm?
Not necessarily. Physical mounting, effective mass, cartridge compliance, tracking-force range and phono-stage compatibility should all be considered.
What happens if tracking force is wrong?
Incorrect tracking force can reduce tracking stability and increase distortion. Always use the cartridge manufacturer's recommended range.
Final Thoughts
The tonearm is the mechanical link between the turntable and the cartridge. Its job is to let the stylus follow the groove accurately while keeping the cartridge stable and correctly aligned.
Understanding tracking force, anti-skate, geometry and cartridge compatibility makes turntable setup easier and helps explain why the tonearm is such an important part of vinyl playback.
