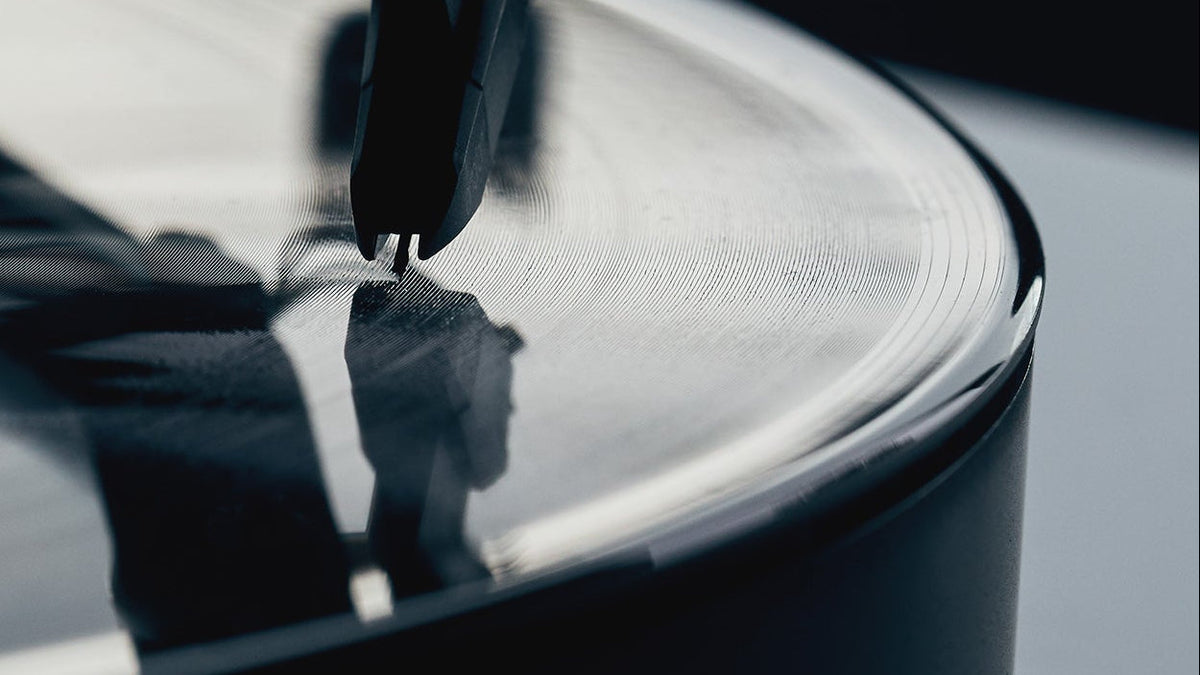

The turntable cartridge is the small component at the end of the tonearm that converts the movement of a stylus in a vinyl groove into an electrical signal.
It is one of the most important links in the playback chain because every musical signal begins as a mechanical movement at the stylus. This guide explains how cartridges work, the difference between moving magnet and moving coil designs and what to check when choosing or setting one up.
What Is a Turntable Cartridge?
A turntable cartridge is a transducer mounted at the front of the tonearm. The stylus follows the groove in the vinyl record and transfers its movement into the cartridge body.
Inside the cartridge, that mechanical movement is converted into a very small electrical signal. The signal then travels to a phono preamp, amplifier and speakers.
For a broader overview of this process, see our complete turntable and record player guide.
Is the Cartridge the Same as the Stylus?
No. The cartridge is the complete transducer assembly. The stylus is the small tip that physically contacts the record groove.
On some moving magnet cartridges, the stylus assembly can be replaced separately. On many moving coil designs, stylus replacement may require a specialist rebuild, exchange or complete cartridge replacement.
How Does a Phono Cartridge Work?
As the stylus follows the groove, a cantilever transfers its motion into the cartridge generator. The generator uses magnets and coils to create a corresponding electrical signal.
The exact arrangement depends on the cartridge type, but the principle is the same: mechanical groove movement becomes an electrical representation of the recorded sound.
What Is a Moving Magnet Cartridge?
In a moving magnet cartridge, a small magnet moves in relation to fixed coils. Moving magnet, often abbreviated MM, is one of the most common cartridge types in home hi-fi systems.
MM cartridges generally produce a relatively healthy output level and are compatible with the MM input found on many phono preamps and integrated amplifiers.
Many MM designs also allow the stylus assembly to be replaced without replacing the entire cartridge.
What Is a Moving Coil Cartridge?
In a moving coil cartridge, the coil moves while the magnet structure remains fixed. Moving coil cartridges are commonly abbreviated MC.
Many MC cartridges produce a lower electrical output than MM cartridges, so they may require a phono stage with additional gain and appropriate loading settings.
Moving coil designs vary widely, so the manufacturer's electrical and mechanical specifications should always be checked.
Moving Magnet vs Moving Coil
Neither design is automatically better for every system. They use different generator architectures and can have different output, impedance, mass, stylus-service and phono-stage requirements.
Typical Moving Magnet Characteristics
- Often higher output than low-output MC designs.
- Widely supported by phono preamps.
- Replaceable stylus on many models.
- Broad choice across many price levels.
Typical Moving Coil Characteristics
- Often lower electrical output.
- May require dedicated MC gain and loading.
- Stylus replacement can be more specialised.
- Used in many advanced and high-end vinyl systems.
What Is Cartridge Compliance?
Compliance describes how flexible the cartridge suspension is. It interacts with the effective mass of the tonearm and helps determine the resonance behaviour of the arm and cartridge combination.
This means a cartridge should not be selected only by price or brand. Mechanical compatibility with the tonearm is also important.
Why Tracking Force Matters
Every cartridge is designed to operate within a specified tracking-force range. The tonearm counterweight is used to apply the required downward force.
Too little force can cause unstable tracking, while excessive force can place unnecessary load on the groove and stylus. Follow the cartridge manufacturer's recommendation and verify the setting when possible.
What Is Cartridge Alignment?
A pivoted tonearm moves across the record in an arc, so the cartridge must be aligned to minimise tracking-angle error.
Alignment can involve overhang and offset angle, depending on the tonearm. A suitable alignment protractor or the manufacturer's setup method should be used when a cartridge is installed or changed.
Cartridge Loading and the Phono Preamp
The phono stage must provide suitable gain and electrical loading for the cartridge. MM and MC inputs often use different settings.
An incorrect match can affect output level, noise and frequency response. Always check both the cartridge and phono preamp specifications before connecting a new cartridge.
When Should a Stylus Be Replaced?
Stylus life depends on stylus profile, tracking force, record cleanliness, setup and use. There is no single replacement interval that applies to every cartridge.
Signs of a problem can include increased distortion, mistracking or visible stylus damage. If you are uncertain, have the stylus inspected rather than continuing to play valuable records.
How to Protect a Turntable Cartridge
- Keep records and the stylus clean.
- Use the correct tracking force.
- Lower the stylus gently with the cueing mechanism.
- Protect the stylus when installing or removing a cartridge.
- Check alignment after installation.
- Avoid touching the cantilever.
- Do not continue using a visibly damaged stylus.
Cartridge Choice in a High-End Turntable
In a high-end system, the cartridge should be selected together with the tonearm and phono stage. A more expensive cartridge will not reach its potential if the arm is mechanically incompatible or the phono stage cannot provide the required gain and loading.
The MAG-LEV Audio ML1 is a dedicated high-end turntable platform, so cartridge choice is part of configuring the complete vinyl playback system rather than treating the cartridge as an isolated accessory.
Frequently Asked Questions
What is a turntable cartridge?
It is the component that converts stylus movement in the vinyl groove into an electrical signal.
Is moving coil better than moving magnet?
Not universally. Both technologies can perform at a high level. The right choice depends on tonearm compatibility, phono-stage requirements, budget and system priorities.
Can I change the cartridge on my turntable?
Many turntables allow cartridge replacement, but you must check mounting, tonearm compatibility, tracking-force range and phono-stage requirements.
Do I need a different preamp for a moving coil cartridge?
Possibly. Many low-output MC cartridges require more gain and different loading than an MM input provides. Check the phono preamp specifications.
Can a bad cartridge damage records?
A damaged stylus or severely incorrect setup can harm records. If the stylus is damaged or playback suddenly becomes unstable, stop using it until the cause is identified.
Final Thoughts
The cartridge is where the physical groove becomes an electrical audio signal. Moving magnet and moving coil designs take different approaches, but both depend on correct tonearm matching, tracking force, alignment and phono amplification.
Understanding those relationships is more useful than choosing a cartridge by price alone.
