Electronic stylus balance

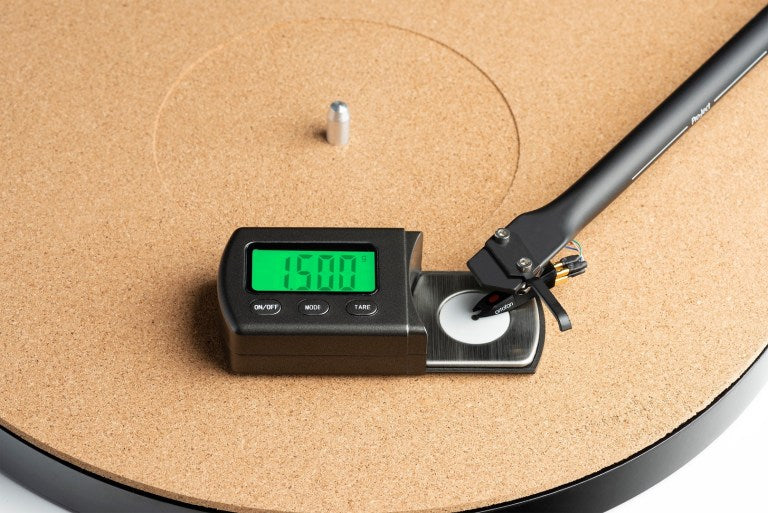

The Measure it E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.002 gram increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by pushing a button. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.

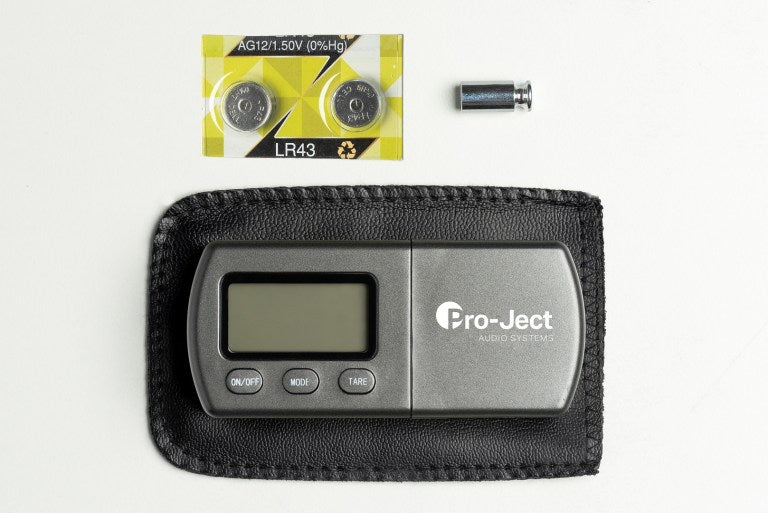

Scope of delivery:

stylus balance
calibration weight (5 g)
2x LR43 (AG12) button cell batteries + 2 pieces as backup
protection pouch for the meter
user guide

Features:

4 digit LCD display with backlight
4 weighing modes
Wide capacity 0 - 5g
Calibration weight
Precision data readouts with low variance
Auto calibration function
Auto power off after 30 seconds
Low power consumption
Button cell batteries included


Technical Specifications:

Capacity 0 - 5g
Variance ±0,002g
Weighting modes gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct)
Display 4 digit LCD with backlight
Calibration auto calibration using a 5g weight
Auto off 30 seconds off
Replacement battery 2 x LR43 (AG12) button cells, 1,5V
Operating temperature +10 - +30° C (50 - 86 degrees Fahrenheit)
Dimensions (W x H x D) 96 x 21 x 43mm
Weight 49g
