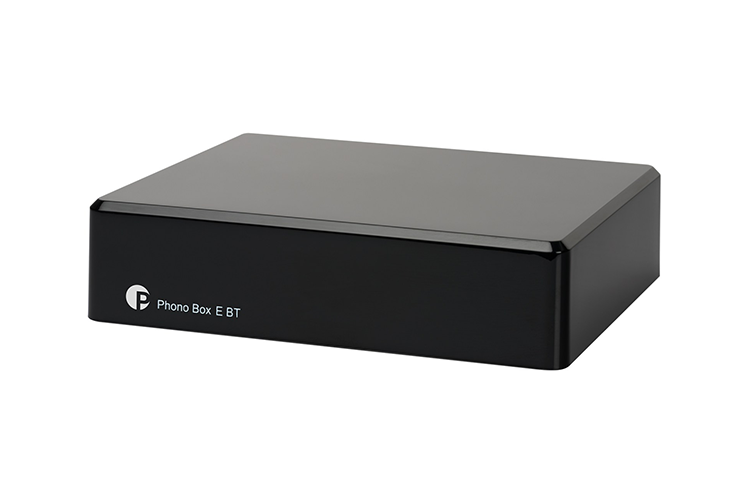

Phono Box E BT 5 (Bluetooth)
Stream your turntable wirelessly
Wireless Bluetooth 5.2 streaming with aptX Adaptive and HD of built-in Phono preamplifier and additional line source
Our entry level phono stage has been highly requested by the aspiring and rising audiophile. After the big success of our VT-E BT we decided to create a phono preamplifier that turns any turntable (with moving magnet cartridge) into a modern Bluetooth streamer. Phono Box E BT offers two separate inputs, one phono and one line level input, as well as two separate outputs. It can be used as an ordinary MM phono stage that connects to any hifi amplifier via its line level ouput (3.5mm jack) or it can be used as a Bluetooth streamer. It takes any provided analogue input signal, converts it and sends digital audio to any Bluetooth receiver within a 10m range. Those devices could be either Bluetooth headphones, speakers or any other Bluetooth receiver. The super-fast pairing is the icing on the cake and makes sure that listening to your LPs will be as painless and quick as possible.
The housing is shielded with a metal interior which protects the unit against vibrations and radio frequency interferences, which guarantees an undisturbed listening experience.
Phono Box E BT is the perfect companion for all modern audiophiles who want to enjoy their vinyl hobby with the comfort of wireless streaming!
Features
Connect your turntable wirelessly
Bluetooth 5.2 streaming with aptX Adaptive and HD support
2 Inputs: 1 Phono and 1 Line Input
Suitable for MM cartridges
Precise RIAA equalisation
Use analogue RCA & Bluetooth output simultaneously
Low noise circuitry
Internal metal shielding
Gold-plated RCA connectors
Outboard power supply included
Colour options: black or white
Technical Specifications
Phono input impedance 47 kohms
Phono capacitance 100 pF
Gain phono 34 dB
Inputs 1 Phono (RCA), 1 Line In (3.5 mm)
Outputs 1 Line Out (3.5 mm), 1 Bluetooth
Noise floor 74 dB
THD < 0,02% at 1kHz
Phono/Line in max. input voltage 800mV
RIAA equalization curve accuracy within 0.5 dB/20 Hz - 20 kHz
Bluetooth V5.2, aptX, aptX Adaptive, aptX HD
Outboard power supply 18 V/500 mA DC, suitable for your country's mains supply
Power consumption 200 mA DC
Dimensions W x H x D (D with sockets) 120 x 32 x 100 (106) mm
Weight 280 g without power supply
